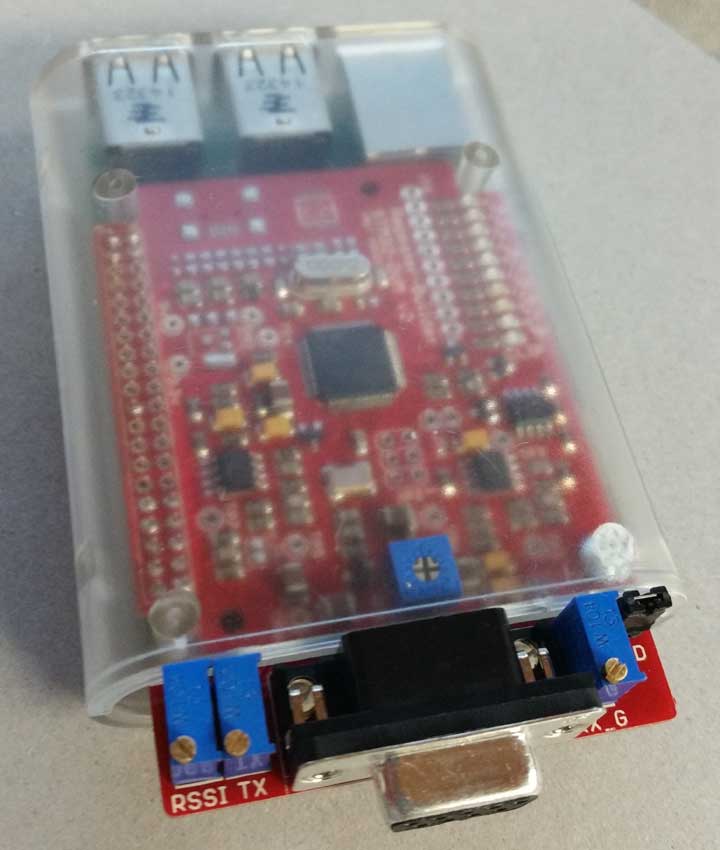

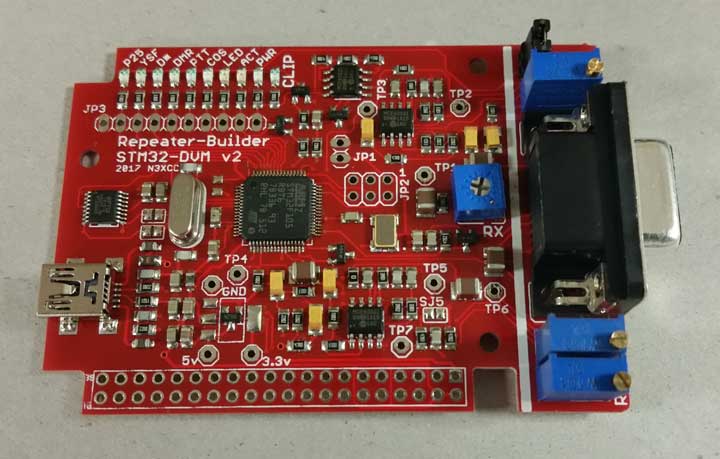

Folks, The subject line says it all: The RB-STM32-DVM is now back in stock. After a longer than anticipated hiatus, we now have a run of 50 blank boards. Of these 50, 15 are now completely assembled, tested and ready for immediate shipment. I will assemble more boards when I return from vacation on August 21. (provided we all survive the solar eclipse that day.) The new Version 2 board is RED in color to easily differentiate it from the V1 (green) board. There are few circuitry changes: * We added an input attenuation pot. (to knock down higher amplitude discriminator levels.) * We changed the supply source for the transmit audio amplifiers and added a bit of gain so that the TX audio level can be as high as 5vp-p. (This *should* be enough audio to drive exciters that require more audio such as the Yaesu DR-1x.) * The biggest addition to the Rev2 board is a clipping indicator that allows for RX audio level adjustment without having an oscilloscope. The new Schematic and Board layout can be found here: http://www.repeater-builder.com/products/pdfs/STM32_DVM_v2.pdf The STM32-DVM combines the necessary audio filtering and the processing horsepower (and digital to analog interfaces) of the STM32 microcomputer onto one board. (see attached) As well as running in a typical "stand alone" USB based interface, this module is also available in a "PI Hat" configuration that will plug directly onto a Raspberry PI 2/3. As with all MMDVM boards, this one is for "experienced users" or someone that is capable of learning what is necessary for its successful deployment. This module is NOT a "magic bean" that will make all of your digital dreams come true, simply by double-stick taping it to the top of a radio and waving your magic soldering iron. ;) With the above in mind, Steve N4IRS and I *have* come up with a few "recipes" that will work for an initial test deployment. I will share those in a future e-mail. Initial pricing is as follows: STM32-DVM-USB (stand alone) - $80 (Includes USB cable) STM32-DVM-Hat (RPi Hat) - $75 (both of the above include mating DB-9 connector and hood) For those who would like a "ready to go" bundle: 1) STM32-DVM-Hat 1) Raspberry Pi3 (with heatsinks) 1) Pre-programmed 16GB micro SD card - MW0MWZ's PiStar image 1) Transparent case 1) 5v@3A micro USB power supply Complete assembled package - $200 More information and PayPal ordering is available at http://www.repeater-builder.com/products/stm32-dvm.html All Repeater-Builder products are made in house in the USA. No outsourcing here!! Scott -- Scott Zimmerman Amateur Radio Call N3XCC 474 Barnett Road Boswell, PA 15531
