Re: [App_rpt-users] RTCM Inbound (Eth Rx) packet out of bounds
I just checked my log and I have had the Voter lost master timing source message 14 times since November 16. A few times have been in quick succession. I run just the one RTCM for both the radio and the master timing source on the network. I haven't had any out of bounds issues though since moving my system to the mountains, it's been working flawlessly. I'm using a Mikrotik RB2011UiAS router. I have my Pi (asterisk host) set on Auto negotiation and it's connected at 100mbps full duplex. The RTCM/VOTER board I've switched off auto negotiation and have it at 10mbps and half duplex.
In addition the the error messages I have the occasional transmitter drop out... no hang time, just instant tx off in the middle of a transmission. Fortunately it's a very short period of time. It could be the 5.7 Ghz hop from my server to the hill... maybe DFS but I've seen no evidence of any issues with the Ubiquiti radios. I have the same router as you, Hayden. I'm going to set the switch port for Full Duplex 10Mb (right now it's on auto) and the RTCM to full duplex and see what that does. On Thu, Nov 30, 2017 at 1:59 PM, Hayden Honeywood <haydenph91@gmail.com> wrote:
I just checked my log and I have had the Voter lost master timing source message 14 times since November 16. A few times have been in quick succession.
I run just the one RTCM for both the radio and the master timing source on the network. I haven't had any out of bounds issues though since moving my system to the mountains, it's been working flawlessly.
I'm using a Mikrotik RB2011UiAS router. I have my Pi (asterisk host) set on Auto negotiation and it's connected at 100mbps full duplex. The RTCM/VOTER board I've switched off auto negotiation and have it at 10mbps and half duplex.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/ cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
-- -- Tim

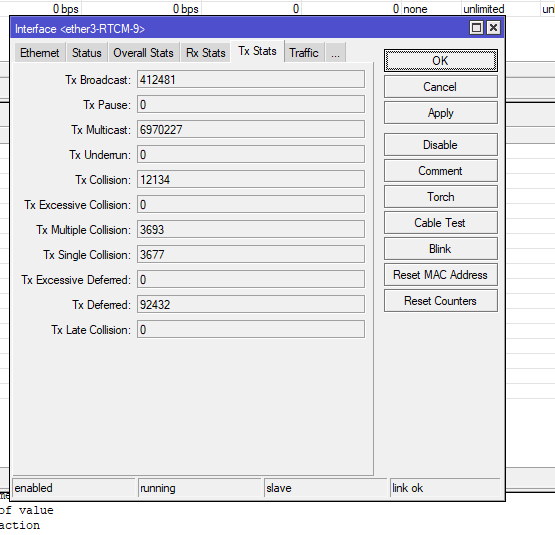

Following Bryan's directions I've changed my RTCM and it's switch port to 10Mb full duplex. There were TX collisions and other errors on the RTCM switch port before the change. The server was auto set to 100Mb full and is running error free. On Thu, Nov 30, 2017 at 3:41 PM, Tim Sawyer <tisawyer@gmail.com> wrote:
In addition the the error messages I have the occasional transmitter drop out... no hang time, just instant tx off in the middle of a transmission. Fortunately it's a very short period of time. It could be the 5.7 Ghz hop from my server to the hill... maybe DFS but I've seen no evidence of any issues with the Ubiquiti radios.
I have the same router as you, Hayden. I'm going to set the switch port for Full Duplex 10Mb (right now it's on auto) and the RTCM to full duplex and see what that does.
On Thu, Nov 30, 2017 at 1:59 PM, Hayden Honeywood <haydenph91@gmail.com> wrote:
I just checked my log and I have had the Voter lost master timing source message 14 times since November 16. A few times have been in quick succession.
I run just the one RTCM for both the radio and the master timing source on the network. I haven't had any out of bounds issues though since moving my system to the mountains, it's been working flawlessly.
I'm using a Mikrotik RB2011UiAS router. I have my Pi (asterisk host) set on Auto negotiation and it's connected at 100mbps full duplex. The RTCM/VOTER board I've switched off auto negotiation and have it at 10mbps and half duplex.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/c gi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
-- -- Tim
-- -- Tim
Steve Can you tell me how to configure a Zomspot to be used with Dial ? Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
Neil, Not sure what you are trying to do. Steve On 12/08/2017 07:14 PM, Neil k8it wrote:
Steve Can you tell me how to configure a Zomspot to be used with Dial ? Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
is it possible to use a zomspot with dial for a small hotspot for asterisk Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479 From: Steve Zingman Sent: Friday, December 08, 2017 7:30 PM To: Users of Asterisk app_rpt ; Neil k8it Subject: Re: [App_rpt-users] How to configure Zomspot for Dial? Neil, Not sure what you are trying to do. Steve On 12/08/2017 07:14 PM, Neil k8it wrote: Steve Can you tell me how to configure a Zomspot to be used with Dial ? Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479 _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
Neil, Asterisk can be used with a bridge to communicate with DMR and D-Star today. P25 and Fusion coming soon. Are you trying to build a bridge? Are you trying to use a ZUMSpot as the RF portion of a Analog HotSpot? Either way, HB_Bridge, IPSC_Bridge and D-Star are outside of the purpose of this list. I suggest you join <https://groups.io/g/DVSwitch/topics> where DVSwitch is discussed. 73, Steve N4IRS On 12/08/2017 07:49 PM, Neil k8it wrote:
is it possible to use a zomspot with dial for a small hotspot for asterisk Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
*From:* Steve Zingman <mailto:szingman@msgstor.com> *Sent:* Friday, December 08, 2017 7:30 PM *To:* Users of Asterisk app_rpt <mailto:app_rpt-users@lists.allstarlink.org> ; Neil k8it <mailto:k8it@cac.net> *Subject:* Re: [App_rpt-users] How to configure Zomspot for Dial?
Neil, Not sure what you are trying to do.
Steve
On 12/08/2017 07:14 PM, Neil k8it wrote:
Steve Can you tell me how to configure a Zomspot to be used with Dial ? Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visithttp://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
Where do we find info on configuring Allstar to work with a bridge? Thanks, Bob K6ECM Sent from iPad
On Dec 8, 2017, at 5:07 PM, Steve Zingman <szingman@msgstor.com> wrote:
Neil, Asterisk can be used with a bridge to communicate with DMR and D-Star today. P25 and Fusion coming soon. Are you trying to build a bridge? Are you trying to use a ZUMSpot as the RF portion of a Analog HotSpot?
Either way, HB_Bridge, IPSC_Bridge and D-Star are outside of the purpose of this list. I suggest you join <https://groups.io/g/DVSwitch/topics> where DVSwitch is discussed.
73, Steve N4IRS
On 12/08/2017 07:49 PM, Neil k8it wrote: is it possible to use a zomspot with dial for a small hotspot for asterisk
Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
From: Steve Zingman Sent: Friday, December 08, 2017 7:30 PM To: Users of Asterisk app_rpt ; Neil k8it Subject: Re: [App_rpt-users] How to configure Zomspot for Dial?
Neil, Not sure what you are trying to do.
Steve
On 12/08/2017 07:14 PM, Neil k8it wrote: Steve
Can you tell me how to configure a Zomspot to be used with Dial ?
Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
In AllStarLink we use the usrp channel driver to talk to external bridges. The sample config that are included show you how to configure the usrp channel driver. A simplified rpt.conf is included with Analog_Bridge at <https://github.com/N4IRS/Analog_Bridge/blob/master/rpt.conf.txt> Steve On 12/08/2017 08:16 PM, Bob Pyke wrote:
Where do we find info on configuring Allstar to work with a bridge?
Thanks, Bob K6ECM
Sent from iPad
On Dec 8, 2017, at 5:07 PM, Steve Zingman <szingman@msgstor.com <mailto:szingman@msgstor.com>> wrote:
Neil, Asterisk can be used with a bridge to communicate with DMR and D-Star today. P25 and Fusion coming soon. Are you trying to build a bridge? Are you trying to use a ZUMSpot as the RF portion of a Analog HotSpot?
Either way, HB_Bridge, IPSC_Bridge and D-Star are outside of the purpose of this list. I suggest you join <https://groups.io/g/DVSwitch/topics> where DVSwitch is discussed.
73, Steve N4IRS
On 12/08/2017 07:49 PM, Neil k8it wrote:
is it possible to use a zomspot with dial for a small hotspot for asterisk Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
*From:* Steve Zingman <mailto:szingman@msgstor.com> *Sent:* Friday, December 08, 2017 7:30 PM *To:* Users of Asterisk app_rpt <mailto:app_rpt-users@lists.allstarlink.org> ; Neil k8it <mailto:k8it@cac.net> *Subject:* Re: [App_rpt-users] How to configure Zomspot for Dial?
Neil, Not sure what you are trying to do.
Steve
On 12/08/2017 07:14 PM, Neil k8it wrote:
Steve Can you tell me how to configure a Zomspot to be used with Dial ? Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visithttp://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org <mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
What is the best low power transceiver to be used for a DIAL hotspot? Where can I get one which is plug and play ready? How much? I like how the Zumspot works out for the digital modes, however I would like to build up something for Allstar and Echolink. Thanks 73 Neil Sablatzky K8IT Allstar Node 41838 KITLINK Allstar Node 42087 KITLINK HUB IRLP Node exp0068 Echolink K8IT-L WIRES-X K8IT 11479 Room 21479
