hi all well i dont know if i am in the ight group to ask my question,i will let the Moderator filter it: i have an MSR2000 here that i want to be used on AllStar,i need to know what interface i should buy,how to connect it ?? i have not found yet on Facebook any Groups about AllStar. Can you help me,anyone have experiences, any help will appreciated. thanks 73's Gervais ve2ckn
Well Gervais, You are in the right place for help with allstar and app-rpt. What you do and how you do it is not entirely written in stone. Lots of dependencies on what you have to work with and any site / hardware limitations. Sp your first step is probably reading, and lots of it so you can make the right decisions for your install from the beginning. This link may help get you started so you are asking the right questions anyway... http://docs.allstarlink.org/drupal/ Since the last time I have responded to this same question, some time ago, a lot has changed. Many flavors of computer hardware are supported including raspberry pi. I don't wish to advise you on what you should use but if I were you starting out, I think I would experiment a bit with a old PC running at 2ghz and 2gb ram with the ACID software found at allstarlink.org get to know the in's and out's before leaping into unfamiliar hardware that might add to the learning pain. You might state to the group what you intend to do with the system... ie remote mountain repeater or wide area voted system and perhaps someone will pick it up from there. Anyway, this is the place to ask questions to your problems. Plenty of guys read this daily. 73 for now, ...mike/kb8jnm ----- Original Message ----- From: "Users of Asterisk app_rpt" <app_rpt-users@lists.allstarlink.org> To:"app_rpt-users@lists.allstarlink.org" <app_rpt-users@lists.allstarlink.org> Cc: Sent:Sat, 3 Mar 2018 20:58:09 +0000 Subject:[App_rpt-users] MRS2000 interface for AllStar ??? hi all well i dont know if i am in the ight group to ask my question,i will let the Moderator filter it: i have an MSR2000 here that i want to be used on AllStar,i need to know what interface i should buy,how to connect it ?? i have not found yet on Facebook any Groups about AllStar. Can you help me,anyone have experiences, any help will appreciated. thanks 73's Gervais ve2ckn

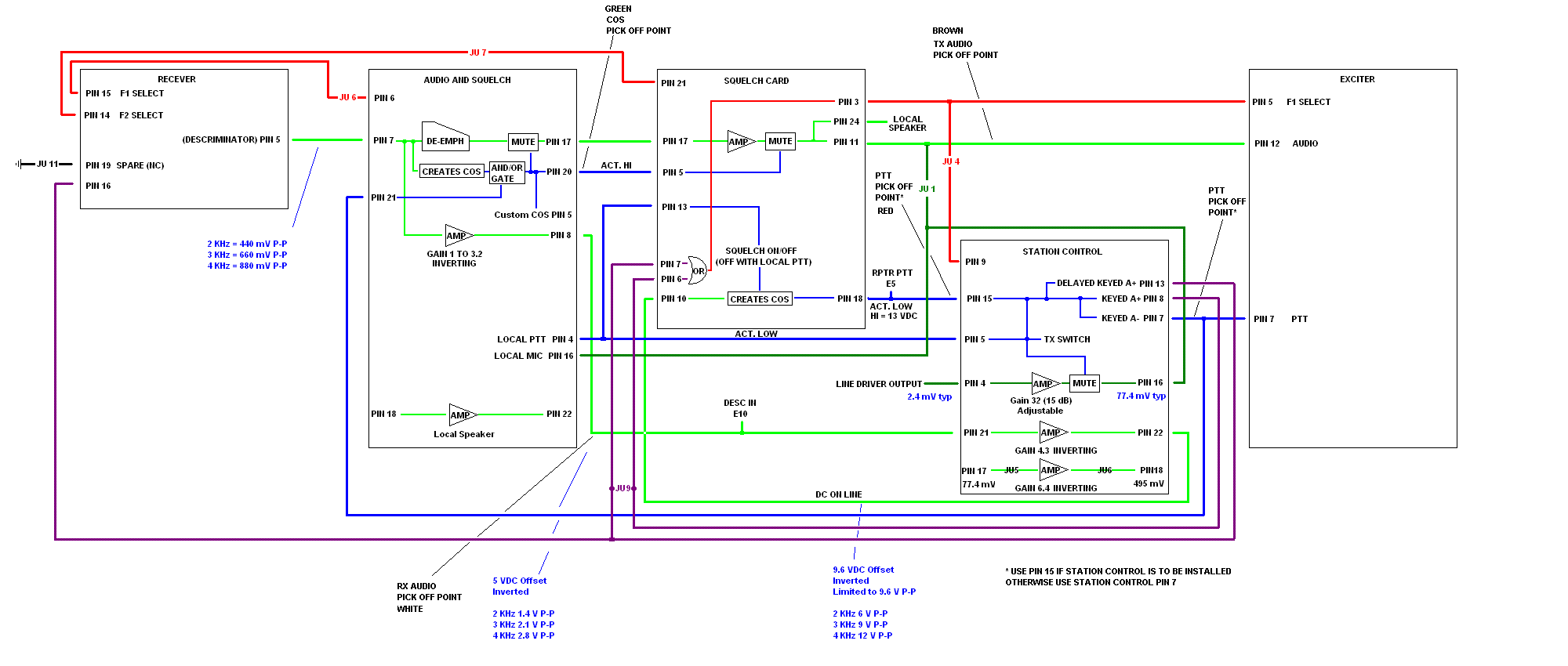

To interface it you'll need to make a cable and solder it to some pick off points. Attached is the drawing I made when wiring MSR2000's to controllers. All you need is an A&S (Audio and Squelch) card and a Station Control card. I don't use the "squelch card", as the squelch in the A&S card is superior. I like pin 8 on the A&S card for discriminator audio, pin 17 for muted de-emphasised audio Pin 20 on the A&S for COS (active hi). I typically soldered on a PNP transistor in the A&S card and pulled an open collector out to pin 5 for an active low COS line. Tx audio is on pin 11 of the squelch card. PTT (active low) is pin 7 of the Station Control Card. Cheers, Jesse On Sat, Mar 3, 2018 at 12:58 PM, Gervais Fillion <ve2ckn2@hotmail.fr> wrote:
hi all
well i dont know if i am in the ight group to ask my question,i will let the Moderator filter it:
i have an MSR2000 here that i want to be used on AllStar,i need to know what interface i should buy,how to connect it ??
i have not found yet on Facebook any Groups about AllStar.
Can you help me,anyone have experiences,
any help will appreciated.
thanks
73's
Gervais
ve2ckn
