Squelch Tail Crash Elimination
Hello, I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however... I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio? The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417 The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64. I am very novice with Linux and Asterisk but learning bits and pieces... Thank you John de KE5RS _._ . ..... ._. ...
Well, I don't want to lead you astray... as I'm not for sure on this... Had to think on it a while... You might try adding some time to rxondelay (ms) but I'm not sure that will delay the repeated audio. I think it may only delay the cor activation time. But, if nobody chimes in with the 'right stuff' give it a try. I'm thinkin you might need to create a special audio delay. 73, ...mike/kb8jnm On 6/5/2018 10:10 PM, John W Benedict wrote:
Hello,
I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however… I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio?
The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417
The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64.
I am very novice with Linux and Asterisk but learning bits and pieces…
Thank you
John de KE5RS _._ . ..... ._. ...
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
I think that if you feed direct discriminator audio to the usb interface and use usbradio then it automatically takes care of the necessary delays and avoids loosing any audio in the process. For best results you can grab the direct discriminator audio from the cable that runs from inside the Receiver Unit to the Filter Unit (shown below), I can't remember if I used the L-in or the R-in. Or second best you can use the DSP processed discriminator output in the DB15 connector (center pin in center row, pin 8) but it isn't as good and has more delay. On Tue, Jun 5, 2018 at 9:41 PM, Mike <mm@midnighteng.com> wrote:
Well, I don't want to lead you astray... as I'm not for sure on this...
Had to think on it a while...
You might try adding some time to rxondelay (ms) but I'm not sure that will delay the repeated audio.
I think it may only delay the cor activation time.
But, if nobody chimes in with the 'right stuff' give it a try.
I'm thinkin you might need to create a special audio delay.
73,
...mike/kb8jnm
On 6/5/2018 10:10 PM, John W Benedict wrote:
Hello,
I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however… I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio?
The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417
The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64.
I am very novice with Linux and Asterisk but learning bits and pieces…
Thank you
John de KE5RS _._ . ..... ._. ...
_______________________________________________ App_rpt-users mailing listApp_rpt-users@lists.allstarlink.orghttp://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/ cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
Thank you Chuck and Mike, Chuck, Yes… I thought USBRadio with more complexity, not simple would be what was needed… I am using pin 9 now from the 15 pin and going to pin 21 at the URIx. I will look at what you show below and see if that is the direction to go. As you described “Best results”, I will check into grabbing the discriminator audio being a little nervous with my skill set 😊 Thank you. Mike, I did play some with the “rxondelay” but with no luck. What I remember, adding time to “rxondelay “ gave me a short burst of initial audio out the front speaker with more time getting a longer audio burst before it gets muted. This audio burst would only happen if the squelch tale drops completely from the previous transmission. I did not hear a difference with what was heard on the air from the transmitter including the squelch crash was still present. Thank you for your reply… John de KE5RS _._ . ..... ._. ... From: App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org> On Behalf Of Chuck Henderson Sent: Tuesday, June 5, 2018 10:45 PM To: Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org> Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination I think that if you feed direct discriminator audio to the usb interface and use usbradio then it automatically takes care of the necessary delays and avoids loosing any audio in the process. For best results you can grab the direct discriminator audio from the cable that runs from inside the Receiver Unit to the Filter Unit (shown below), I can't remember if I used the L-in or the R-in. Or second best you can use the DSP processed discriminator output in the DB15 connector (center pin in center row, pin 8) but it isn't as good and has more delay. [cid:image002.png@01D3FD53.7BAAA450] On Tue, Jun 5, 2018 at 9:41 PM, Mike <mm@midnighteng.com<mailto:mm@midnighteng.com>> wrote: Well, I don't want to lead you astray... as I'm not for sure on this... Had to think on it a while... You might try adding some time to rxondelay (ms) but I'm not sure that will delay the repeated audio. I think it may only delay the cor activation time. But, if nobody chimes in with the 'right stuff' give it a try. I'm thinkin you might need to create a special audio delay. 73, ...mike/kb8jnm On 6/5/2018 10:10 PM, John W Benedict wrote: Hello, I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however… I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio? The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417 The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64. I am very novice with Linux and Asterisk but learning bits and pieces… Thank you John de KE5RS _._ . ..... ._. ... _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
Using the channel driver usbradio, did you run radio-tune-menu and adjust the squelch? It sounds to me, like the squelch is wide open, and you're using usbradio.conf to define the pl tone(s). If your squelch is wide open, you will hear that bit of squelch crash after the tone is dropped, and before the repeater drops. There are 2 ways to go on the settings, and I don't remember which is which so there's a 50/50 shot at this... but "as I recall" (and I'm not remembering well, these days) the Lower the number, the 'looser' the squelch. For experimentation, you might try turning the tone requirement for the receiver off, and adjusting that value, while listening to the output of the repeater (while not hooked up to anyone) and determine where the squelch level should be. best of luck es 73 -Geoff/W5OMR (29655) On Wed, Jun 6, 2018 at 5:37 AM, John W Benedict <John@ke5rs.com> wrote:
Thank you Chuck and Mike,
Chuck,
Yes… I thought USBRadio with more complexity, not simple would be what was needed… I am using pin 9 now from the 15 pin and going to pin 21 at the URIx. I will look at what you show below and see if that is the direction to go. As you described “Best results”, I will check into grabbing the discriminator audio being a little nervous with my skill set 😊
Thank you.
Mike,
I did play some with the “rxondelay” but with no luck. What I remember, adding time to “rxondelay “ gave me a short burst of initial audio out the front speaker with more time getting a longer audio burst before it gets muted. This audio burst would only happen if the squelch tale drops completely from the previous transmission. I did not hear a difference with what was heard on the air from the transmitter including the squelch crash was still present.
Thank you for your reply…
John de KE5RS _._ . ..... ._. ...
*From:* App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org> *On Behalf Of *Chuck Henderson *Sent:* Tuesday, June 5, 2018 10:45 PM *To:* Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org> *Subject:* Re: [App_rpt-users] Squelch Tail Crash Elimination
I think that if you feed direct discriminator audio to the usb interface and use usbradio then it automatically takes care of the necessary delays and avoids loosing any audio in the process. For best results you can grab the direct discriminator audio from the cable that runs from inside the Receiver Unit to the Filter Unit (shown below), I can't remember if I used the L-in or the R-in. Or second best you can use the DSP processed discriminator output in the DB15 connector (center pin in center row, pin 8) but it isn't as good and has more delay.
On Tue, Jun 5, 2018 at 9:41 PM, Mike <mm@midnighteng.com> wrote:
Well, I don't want to lead you astray... as I'm not for sure on this...
Had to think on it a while...
You might try adding some time to rxondelay (ms) but I'm not sure that will delay the repeated audio.
I think it may only delay the cor activation time.
But, if nobody chimes in with the 'right stuff' give it a try.
I'm thinkin you might need to create a special audio delay.
73,
...mike/kb8jnm
On 6/5/2018 10:10 PM, John W Benedict wrote:
Hello,
I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however… I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio?
The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417
The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64.
I am very novice with Linux and Asterisk but learning bits and pieces…
Thank you
John de KE5RS _._ . ..... ._. ...
_______________________________________________
App_rpt-users mailing list
App_rpt-users@lists.allstarlink.org
http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button"
You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/ cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/ cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
-- Operating your AM rig without a scope is like driving our car at night without headlights. (~K4KYV) 73 = Best Regards, -Geoff/W5OMR
Are you using AllStar to generate the TX PL tone?? If so, there is a setting to turn the PL off before the TX. If the user radio has a PL decode set and the it responds quickly, the user radio will mute before the repeater TX drops. (Seems to work here, YMMV). txtoctype = notone ; Transmit tone control type: no,phase,notone ; no - CTCSS tone encoding with no hang time ; phase - encode CTCSS and reverse phase ; AKA ("reverse burst") before unkeying TX ; notone - encode CTCSS and stop sending tone before unkeying TX ; AKA ("chicken burst") ...STeve - KF5VH On 6/6/2018 9:24 AM, ARS W5OMR wrote:
Using the channel driver usbradio, did you run radio-tune-menu and adjust the squelch? It sounds to me, like the squelch is wide open, and you're using usbradio.conf to define the pl tone(s). If your squelch is wide open, you will hear that bit of squelch crash after the tone is dropped, and before the repeater drops.
There are 2 ways to go on the settings, and I don't remember which is which so there's a 50/50 shot at this... but "as I recall" (and I'm not remembering well, these days) the Lower the number, the 'looser' the squelch.
For experimentation, you might try turning the tone requirement for the receiver off, and adjusting that value, while listening to the output of the repeater (while not hooked up to anyone) and determine where the squelch level should be.
best of luck es 73 -Geoff/W5OMR (29655)
On Wed, Jun 6, 2018 at 5:37 AM, John W Benedict <John@ke5rs.com <mailto:John@ke5rs.com>> wrote:
Thank you Chuck and Mike,
Chuck,
Yes… I thought USBRadio with more complexity, not simple would be what was needed… I am using pin 9 now from the 15 pin and going to pin 21 at the URIx. I will look at what you show below and see if that is the direction to go. As you described “Best results”, I will check into grabbing the discriminator audio being a little nervous with my skill set 😊
Thank you.
Mike,
I did play some with the “rxondelay” but with no luck. What I remember, adding time to “rxondelay “ gave me a short burst of initial audio out the front speaker with more time getting a longer audio burst before it gets muted. This audio burst would only happen if the squelch tale drops completely from the previous transmission. I did not hear a difference with what was heard on the air from the transmitter including the squelch crash was still present.
Thank you for your reply…
John de KE5RS _._ . ..... ._. ...
*From:* App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org <mailto:app_rpt-users-bounces@lists.allstarlink.org>> *On Behalf Of *Chuck Henderson *Sent:* Tuesday, June 5, 2018 10:45 PM *To:* Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org <mailto:app_rpt-users@lists.allstarlink.org>> *Subject:* Re: [App_rpt-users] Squelch Tail Crash Elimination
I think that if you feed direct discriminator audio to the usb interface and use usbradio then it automatically takes care of the necessary delays and avoids loosing any audio in the process. For best results you can grab the direct discriminator audio from the cable that runs from inside the Receiver Unit to the Filter Unit (shown below), I can't remember if I used the L-in or the R-in. Or second best you can use the DSP processed discriminator output in the DB15 connector (center pin in center row, pin 8) but it isn't as good and has more delay.
On Tue, Jun 5, 2018 at 9:41 PM, Mike <mm@midnighteng.com <mailto:mm@midnighteng.com>> wrote:
Well, I don't want to lead you astray... as I'm not for sure on this...
Had to think on it a while...
You might try adding some time to rxondelay (ms) but I'm not sure that will delay the repeated audio.
I think it may only delay the cor activation time.
But, if nobody chimes in with the 'right stuff' give it a try.
I'm thinkin you might need to create a special audio delay.
73,
...mike/kb8jnm
On 6/5/2018 10:10 PM, John W Benedict wrote:
Hello,
I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however… I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio?
The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417
The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64.
I am very novice with Linux and Asterisk but learning bits and pieces…
Thank you
John de KE5RS _._ . ..... ._. ...
_______________________________________________
App_rpt-users mailing list
App_rpt-users@lists.allstarlink.org <mailto:App_rpt-users@lists.allstarlink.org>
http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users <http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users>
To unsubscribe from this list please visithttp://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users <http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users> and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button"
You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org <mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users <http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users>
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users <http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users> and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org <mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users <http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users>
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users <http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users> and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
-- Operating your AM rig without a scope is like driving our car at night without headlights. (~K4KYV)
73 = Best Regards, -Geoff/W5OMR
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
--- This email has been checked for viruses by Avast antivirus software. https://www.avast.com/antivirus
Geoff, Steve and other curious, My Yaesu DR-1 repeater has been originally configured for HamVOIP using the RPi3, Simple USB with the ComSpec TS64 at the URIx to generate the PL for TX. Typical squelch setting, not opened at the repeater receiver. The cable interface, custom pinout comes right off the stock repeater 15pin connector connected to the 25pin connector on the URIx. It all works very good. As a standalone repeater. HamVOIP does has a feature, “rxaudiodelay” in SimpleUSB that delays the audio eliminating the squelch crash. That also works well… The repeater system works very well as a standalone repeater but… with network traffic such as connected links including Echolink, occasionally I get a little audio flutter, hesitation like dropouts and sometimes the hesitation, like stuttering, the time builds into larger delays like a couple to few seconds. This has been driving us nuts… I have a couple Linux sharp ham buddies near me who have been helping me. We have checked the Roadrunner bandwidth and the Pi CPU usage right during the audio flutter activity and all seems well capable with plenty to spare should not be a problem or cause. It was suggested by another friend in the area I try the ASL image with Debian on a computer. I purchased the DELL SFF 64GB solid state drive and installed the ASL image from Allstar now all up and running I think may have cured the audio flutter problem but now having the squelch crash feature. Using the Tone Squelch at the user end will probably work that but I thought I like to take care of it at the repeater transmitter side if I can. That’s where I’m at now. At this point I may investigate the discriminator audio, pick it off in the receiver and use USBRadio configuration suggested by Chuck. If I can get motivated 😊. I really appreciate all the help and replies. Thank you. John de KE5RS [ke5rs] From: App_rpt-users [mailto:app_rpt-users-bounces@lists.allstarlink.org] On Behalf Of Steve Mahler Sent: Wednesday, June 06, 2018 9:41 AM To: app_rpt-users@lists.allstarlink.org Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination Are you using AllStar to generate the TX PL tone?? If so, there is a setting to turn the PL off before the TX. If the user radio has a PL decode set and the it responds quickly, the user radio will mute before the repeater TX drops. (Seems to work here, YMMV). txtoctype = notone ; Transmit tone control type: no,phase,notone ; no - CTCSS tone encoding with no hang time ; phase - encode CTCSS and reverse phase ; AKA ("reverse burst") before unkeying TX ; notone - encode CTCSS and stop sending tone before unkeying TX ; AKA ("chicken burst") ...STeve - KF5VH On 6/6/2018 9:24 AM, ARS W5OMR wrote: Using the channel driver usbradio, did you run radio-tune-menu and adjust the squelch? It sounds to me, like the squelch is wide open, and you're using usbradio.conf to define the pl tone(s). If your squelch is wide open, you will hear that bit of squelch crash after the tone is dropped, and before the repeater drops. There are 2 ways to go on the settings, and I don't remember which is which so there's a 50/50 shot at this... but "as I recall" (and I'm not remembering well, these days) the Lower the number, the 'looser' the squelch. For experimentation, you might try turning the tone requirement for the receiver off, and adjusting that value, while listening to the output of the repeater (while not hooked up to anyone) and determine where the squelch level should be. best of luck es 73 -Geoff/W5OMR (29655) On Wed, Jun 6, 2018 at 5:37 AM, John W Benedict <John@ke5rs.com<mailto:John@ke5rs.com>> wrote: Thank you Chuck and Mike, Chuck, Yes… I thought USBRadio with more complexity, not simple would be what was needed… I am using pin 9 now from the 15 pin and going to pin 21 at the URIx. I will look at what you show below and see if that is the direction to go. As you described “Best results”, I will check into grabbing the discriminator audio being a little nervous with my skill set 😊 Thank you. Mike, I did play some with the “rxondelay” but with no luck. What I remember, adding time to “rxondelay “ gave me a short burst of initial audio out the front speaker with more time getting a longer audio burst before it gets muted. This audio burst would only happen if the squelch tale drops completely from the previous transmission. I did not hear a difference with what was heard on the air from the transmitter including the squelch crash was still present. Thank you for your reply… John de KE5RS _._ . ..... ._. ... From: App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org<mailto:app_rpt-users-bounces@lists.allstarlink.org>> On Behalf Of Chuck Henderson Sent: Tuesday, June 5, 2018 10:45 PM To: Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org<mailto:app_rpt-users@lists.allstarlink.org>> Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination I think that if you feed direct discriminator audio to the usb interface and use usbradio then it automatically takes care of the necessary delays and avoids loosing any audio in the process. For best results you can grab the direct discriminator audio from the cable that runs from inside the Receiver Unit to the Filter Unit (shown below), I can't remember if I used the L-in or the R-in. Or second best you can use the DSP processed discriminator output in the DB15 connector (center pin in center row, pin 8) but it isn't as good and has more delay. [cid:image002.png@01D3FD95.8042EB20] On Tue, Jun 5, 2018 at 9:41 PM, Mike <mm@midnighteng.com<mailto:mm@midnighteng.com>> wrote: Well, I don't want to lead you astray... as I'm not for sure on this... Had to think on it a while... You might try adding some time to rxondelay (ms) but I'm not sure that will delay the repeated audio. I think it may only delay the cor activation time. But, if nobody chimes in with the 'right stuff' give it a try. I'm thinkin you might need to create a special audio delay. 73, ...mike/kb8jnm On 6/5/2018 10:10 PM, John W Benedict wrote: Hello, I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however… I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio? The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417 The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64. I am very novice with Linux and Asterisk but learning bits and pieces… Thank you John de KE5RS _._ . ..... ._. ... _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. -- Operating your AM rig without a scope is like driving our car at night without headlights. (~K4KYV) 73 = Best Regards, -Geoff/W5OMR _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. [https://ipmcdn.avast.com/images/icons/icon-envelope-tick-round-orange-animated-no-repeat-v1.gif]<https://www.avast.com/sig-email?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=emailclient&utm_term=icon> Virus-free. www.avast.com<https://www.avast.com/sig-email?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=emailclient&utm_term=link>
Why did you use the TS-64 instead of the radio’s PL signal? Thanks, Bob K6ECM 73
On Jun 6, 2018, at 12:31 PM, John W Benedict <John@ke5rs.com> wrote:
Geoff, Steve and other curious,
My Yaesu DR-1 repeater has been originally configured for HamVOIP using the RPi3, Simple USB with the ComSpec TS64 at the URIx to generate the PL for TX. Typical squelch setting, not opened at the repeater receiver. The cable interface, custom pinout comes right off the stock repeater 15pin connector connected to the 25pin connector on the URIx. It all works very good. As a standalone repeater. HamVOIP does has a feature, “rxaudiodelay” in SimpleUSB that delays the audio eliminating the squelch crash. That also works well… The repeater system works very well as a standalone repeater but… with network traffic such as connected links including Echolink, occasionally I get a little audio flutter, hesitation like dropouts and sometimes the hesitation, like stuttering, the time builds into larger delays like a couple to few seconds. This has been driving us nuts… I have a couple Linux sharp ham buddies near me who have been helping me. We have checked the Roadrunner bandwidth and the Pi CPU usage right during the audio flutter activity and all seems well capable with plenty to spare should not be a problem or cause.
It was suggested by another friend in the area I try the ASL image with Debian on a computer. I purchased the DELL SFF 64GB solid state drive and installed the ASL image from Allstar now all up and running I think may have cured the audio flutter problem but now having the squelch crash feature.
Using the Tone Squelch at the user end will probably work that but I thought I like to take care of it at the repeater transmitter side if I can.
That’s where I’m at now.
At this point I may investigate the discriminator audio, pick it off in the receiver and use USBRadio configuration suggested by Chuck. If I can get motivated 😊.
I really appreciate all the help and replies.
Thank you.
John de KE5RS <image001.png>
From: App_rpt-users [mailto:app_rpt-users-bounces@lists.allstarlink.org] On Behalf Of Steve Mahler Sent: Wednesday, June 06, 2018 9:41 AM To: app_rpt-users@lists.allstarlink.org Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination
Are you using AllStar to generate the TX PL tone?? If so, there is a setting to turn the PL off before the TX. If the user radio has a PL decode set and the it responds quickly, the user radio will mute before the repeater TX drops. (Seems to work here, YMMV).
txtoctype = notone ; Transmit tone control type: no,phase,notone ; no - CTCSS tone encoding with no hang time ; phase - encode CTCSS and reverse phase ; AKA ("reverse burst") before unkeying TX ; notone - encode CTCSS and stop sending tone before unkeying TX ; AKA ("chicken burst")
...STeve - KF5VH
On 6/6/2018 9:24 AM, ARS W5OMR wrote: Using the channel driver usbradio, did you run radio-tune-menu and adjust the squelch? It sounds to me, like the squelch is wide open, and you're using usbradio.conf to define the pl tone(s). If your squelch is wide open, you will hear that bit of squelch crash after the tone is dropped, and before the repeater drops.
There are 2 ways to go on the settings, and I don't remember which is which so there's a 50/50 shot at this... but "as I recall" (and I'm not remembering well, these days) the Lower the number, the 'looser' the squelch.
For experimentation, you might try turning the tone requirement for the receiver off, and adjusting that value, while listening to the output of the repeater (while not hooked up to anyone) and determine where the squelch level should be.
best of luck es 73 -Geoff/W5OMR (29655)
On Wed, Jun 6, 2018 at 5:37 AM, John W Benedict <John@ke5rs.com> wrote: Thank you Chuck and Mike,
Chuck, Yes… I thought USBRadio with more complexity, not simple would be what was needed… I am using pin 9 now from the 15 pin and going to pin 21 at the URIx. I will look at what you show below and see if that is the direction to go. As you described “Best results”, I will check into grabbing the discriminator audio being a little nervous with my skill set 😊
Thank you.
Mike, I did play some with the “rxondelay” but with no luck. What I remember, adding time to “rxondelay “ gave me a short burst of initial audio out the front speaker with more time getting a longer audio burst before it gets muted. This audio burst would only happen if the squelch tale drops completely from the previous transmission. I did not hear a difference with what was heard on the air from the transmitter including the squelch crash was still present.
Thank you for your reply… John de KE5RS _._ . ..... ._. ...
From: App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org> On Behalf Of Chuck Henderson Sent: Tuesday, June 5, 2018 10:45 PM To: Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org> Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination

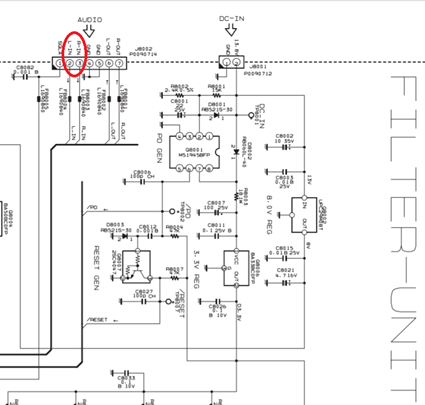

I think that if you feed direct discriminator audio to the usb interface and use usbradio then it automatically takes care of the necessary delays and avoids loosing any audio in the process. For best results you can grab the direct discriminator audio from the cable that runs from inside the Receiver Unit to the Filter Unit (shown below), I can't remember if I used the L-in or the R-in. Or second best you can use the DSP processed discriminator output in the DB15 connector (center pin in center row, pin 8) but it isn't as good and has more delay.
<image002.png>
On Tue, Jun 5, 2018 at 9:41 PM, Mike <mm@midnighteng.com> wrote:
Well, I don't want to lead you astray... as I'm not for sure on this...
Had to think on it a while...
You might try adding some time to rxondelay (ms) but I'm not sure that will delay the repeated audio.
I think it may only delay the cor activation time.
But, if nobody chimes in with the 'right stuff' give it a try.
I'm thinkin you might need to create a special audio delay.
73,
...mike/kb8jnm
On 6/5/2018 10:10 PM, John W Benedict wrote: Hello,
I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however… I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio?
The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417 The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64.
I am very novice with Linux and Asterisk but learning bits and pieces…
Thank you John de KE5RS _._ . ..... ._. ...
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
-- Operating your AM rig without a scope is like driving our car at night without headlights. (~K4KYV)
73 = Best Regards, -Geoff/W5OMR
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
Virus-free. www.avast.com
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
Hi Bob In the beginning, my introduction to Allstar I simply copied an interface cable pinout that was given to me that was already being used with a working Allstar/DR-1 system. I have learned now since, after some investigation, the Yaesu DR-1 does not have the PL tone available on pin 9, (RX audio out) at the 15pin accessory jack. Pin 9 is the pin I am using with SimpleUSB. I was told if I wanted PL with my transmitted audio I needed to supply a PL source and the suggestion was to use the TS64. I do not know why PL is not available or if it might be on another pin? John de KE5RS _._ . ..... ._. ... From: App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org> On Behalf Of Bob Pyke Sent: Wednesday, June 6, 2018 3:55 PM To: Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org> Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination Why did you use the TS-64 instead of the radio’s PL signal? Thanks, Bob K6ECM 73 On Jun 6, 2018, at 12:31 PM, John W Benedict <John@ke5rs.com<mailto:John@ke5rs.com>> wrote: Geoff, Steve and other curious, My Yaesu DR-1 repeater has been originally configured for HamVOIP using the RPi3, Simple USB with the ComSpec TS64 at the URIx to generate the PL for TX. Typical squelch setting, not opened at the repeater receiver. The cable interface, custom pinout comes right off the stock repeater 15pin connector connected to the 25pin connector on the URIx. It all works very good. As a standalone repeater. HamVOIP does has a feature, “rxaudiodelay” in SimpleUSB that delays the audio eliminating the squelch crash. That also works well… The repeater system works very well as a standalone repeater but… with network traffic such as connected links including Echolink, occasionally I get a little audio flutter, hesitation like dropouts and sometimes the hesitation, like stuttering, the time builds into larger delays like a couple to few seconds. This has been driving us nuts… I have a couple Linux sharp ham buddies near me who have been helping me. We have checked the Roadrunner bandwidth and the Pi CPU usage right during the audio flutter activity and all seems well capable with plenty to spare should not be a problem or cause. It was suggested by another friend in the area I try the ASL image with Debian on a computer. I purchased the DELL SFF 64GB solid state drive and installed the ASL image from Allstar now all up and running I think may have cured the audio flutter problem but now having the squelch crash feature. Using the Tone Squelch at the user end will probably work that but I thought I like to take care of it at the repeater transmitter side if I can. That’s where I’m at now. At this point I may investigate the discriminator audio, pick it off in the receiver and use USBRadio configuration suggested by Chuck. If I can get motivated 😊. I really appreciate all the help and replies. Thank you. John de KE5RS <image001.png> From: App_rpt-users [mailto:app_rpt-users-bounces@lists.allstarlink.org] On Behalf Of Steve Mahler Sent: Wednesday, June 06, 2018 9:41 AM To: app_rpt-users@lists.allstarlink.org<mailto:app_rpt-users@lists.allstarlink.org> Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination Are you using AllStar to generate the TX PL tone?? If so, there is a setting to turn the PL off before the TX. If the user radio has a PL decode set and the it responds quickly, the user radio will mute before the repeater TX drops. (Seems to work here, YMMV). txtoctype = notone ; Transmit tone control type: no,phase,notone ; no - CTCSS tone encoding with no hang time ; phase - encode CTCSS and reverse phase ; AKA ("reverse burst") before unkeying TX ; notone - encode CTCSS and stop sending tone before unkeying TX ; AKA ("chicken burst") ...STeve - KF5VH On 6/6/2018 9:24 AM, ARS W5OMR wrote: Using the channel driver usbradio, did you run radio-tune-menu and adjust the squelch? It sounds to me, like the squelch is wide open, and you're using usbradio.conf to define the pl tone(s). If your squelch is wide open, you will hear that bit of squelch crash after the tone is dropped, and before the repeater drops. There are 2 ways to go on the settings, and I don't remember which is which so there's a 50/50 shot at this... but "as I recall" (and I'm not remembering well, these days) the Lower the number, the 'looser' the squelch. For experimentation, you might try turning the tone requirement for the receiver off, and adjusting that value, while listening to the output of the repeater (while not hooked up to anyone) and determine where the squelch level should be. best of luck es 73 -Geoff/W5OMR (29655) On Wed, Jun 6, 2018 at 5:37 AM, John W Benedict <John@ke5rs.com<mailto:John@ke5rs.com>> wrote: Thank you Chuck and Mike, Chuck, Yes… I thought USBRadio with more complexity, not simple would be what was needed… I am using pin 9 now from the 15 pin and going to pin 21 at the URIx. I will look at what you show below and see if that is the direction to go. As you described “Best results”, I will check into grabbing the discriminator audio being a little nervous with my skill set 😊 Thank you. Mike, I did play some with the “rxondelay” but with no luck. What I remember, adding time to “rxondelay “ gave me a short burst of initial audio out the front speaker with more time getting a longer audio burst before it gets muted. This audio burst would only happen if the squelch tale drops completely from the previous transmission. I did not hear a difference with what was heard on the air from the transmitter including the squelch crash was still present. Thank you for your reply… John de KE5RS _._ . ..... ._. ... From: App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org<mailto:app_rpt-users-bounces@lists.allstarlink.org>> On Behalf Of Chuck Henderson Sent: Tuesday, June 5, 2018 10:45 PM To: Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org<mailto:app_rpt-users@lists.allstarlink.org>> Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination I think that if you feed direct discriminator audio to the usb interface and use usbradio then it automatically takes care of the necessary delays and avoids loosing any audio in the process. For best results you can grab the direct discriminator audio from the cable that runs from inside the Receiver Unit to the Filter Unit (shown below), I can't remember if I used the L-in or the R-in. Or second best you can use the DSP processed discriminator output in the DB15 connector (center pin in center row, pin 8) but it isn't as good and has more delay. <image002.png> On Tue, Jun 5, 2018 at 9:41 PM, Mike <mm@midnighteng.com<mailto:mm@midnighteng.com>> wrote: Well, I don't want to lead you astray... as I'm not for sure on this... Had to think on it a while... You might try adding some time to rxondelay (ms) but I'm not sure that will delay the repeated audio. I think it may only delay the cor activation time. But, if nobody chimes in with the 'right stuff' give it a try. I'm thinkin you might need to create a special audio delay. 73, ...mike/kb8jnm On 6/5/2018 10:10 PM, John W Benedict wrote: Hello, I have ASL running a Dell Slim Form computer all seems to be work quite well, connections, Echolink and local repeater with great audio reports however… I like to know how to eliminate the squelch crash on the tail maybe adding some milliseconds to the receiver audio? The system is a Yaesu DR-1X interfaced with the URIx controller using SimpleUSB in ASL version 20180417 The computer: Dell SFF Version 4.9.0-6-amd64 #1 SMP Debian 4.9.88-1+deb9u1 (2018-05-07) x86_64. I am very novice with Linux and Asterisk but learning bits and pieces… Thank you John de KE5RS _._ . ..... ._. ... _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. -- Operating your AM rig without a scope is like driving our car at night without headlights. (~K4KYV) 73 = Best Regards, -Geoff/W5OMR _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem. [https://ipmcdn.avast.com/images/icons/icon-envelope-tick-round-orange-animated-no-repeat-v1.gif]<https://www.avast.com/sig-email?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=emailclient&utm_term=icon> Virus-free. www.avast.com<https://www.avast.com/sig-email?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=emailclient&utm_term=link> _______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org<mailto:App_rpt-users@lists.allstarlink.org> http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users To unsubscribe from this list please visit http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
I can't speak to the specific hardware you're running, but the latency problem if growing seems to be inherent to the audio interface. I've seen it happen on the pci buss type systems before, as well. Back to the squelch crash, I think using the usbradio channel and letting the DSP decode ok.
Thank you Geoff I am going to maybe try that maybe using the discriminator audio from Pin 8 on the DR-1x with USBRadio. John de KE5RS _._ . ..... ._. ... From: App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org> On Behalf Of ARS W5OMR Sent: Wednesday, June 6, 2018 7:22 PM To: Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org> Subject: Re: [App_rpt-users] Squelch Tail Crash Elimination I can't speak to the specific hardware you're running, but the latency problem if growing seems to be inherent to the audio interface. I've seen it happen on the pci buss type systems before, as well. Back to the squelch crash, I think using the usbradio channel and letting the DSP decode ok.
I've -got- to stop replying on my phone... sorry for the typos and terse response... I'm a big guy and those buttons are -sooo- small... I meant to say "I think using the usbradio channel driver, and letting the DSP software decode the pl would be better." There was even some discussion a while back about using different PL's to allow different functions... ie: use one pl to access the repeater, locally, yet, another pl to access the repeater and it's linking. That sounds pretty cool... driving around, talking to the local drive-time crowd, hanging out locally on the repeater, then you hear someone come on the machine from across the country... hmmm.. lemme change PL's and talk to -that- guy... but... what about the locals? I think the better option there, would be to connect in monitor mode, have the monitor volume about half-muted so as to not interfere with the local traffic, and THEN, if something is of interest, connect fully to that node, and join in. Or, you could use a second pl to secure access to sending command codes...... lots of options, when using the DSP portion of ASL. -Geoff/W5OMR On Wed, Jun 6, 2018 at 8:41 PM, John W Benedict <John@ke5rs.com> wrote:
Thank you Geoff
I am going to maybe try that maybe using the discriminator audio from Pin 8 on the DR-1x with USBRadio.
John de KE5RS _._ . ..... ._. ...
*From:* App_rpt-users <app_rpt-users-bounces@lists.allstarlink.org> *On Behalf Of *ARS W5OMR *Sent:* Wednesday, June 6, 2018 7:22 PM *To:* Users of Asterisk app_rpt <app_rpt-users@lists.allstarlink.org> *Subject:* Re: [App_rpt-users] Squelch Tail Crash Elimination
I can't speak to the specific hardware you're running, but the latency problem if growing seems to be inherent to the audio interface.
I've seen it happen on the pci buss type systems before, as well.
Back to the squelch crash, I think using the usbradio channel and letting the DSP decode ok.
_______________________________________________ App_rpt-users mailing list App_rpt-users@lists.allstarlink.org http://lists.allstarlink.org/cgi-bin/mailman/listinfo/app_rpt-users
To unsubscribe from this list please visit http://lists.allstarlink.org/ cgi-bin/mailman/listinfo/app_rpt-users and scroll down to the bottom of the page. Enter your email address and press the "Unsubscribe or edit options button" You do not need a password to unsubscribe, you can do it via email confirmation. If you have trouble unsubscribing, please send a message to the list detailing the problem.
-- Operating your AM rig without a scope is like driving our car at night without headlights. (~K4KYV) 73 = Best Regards, -Geoff/W5OMR
